Gypsum-based board products
Tiger Square Tone D Plus

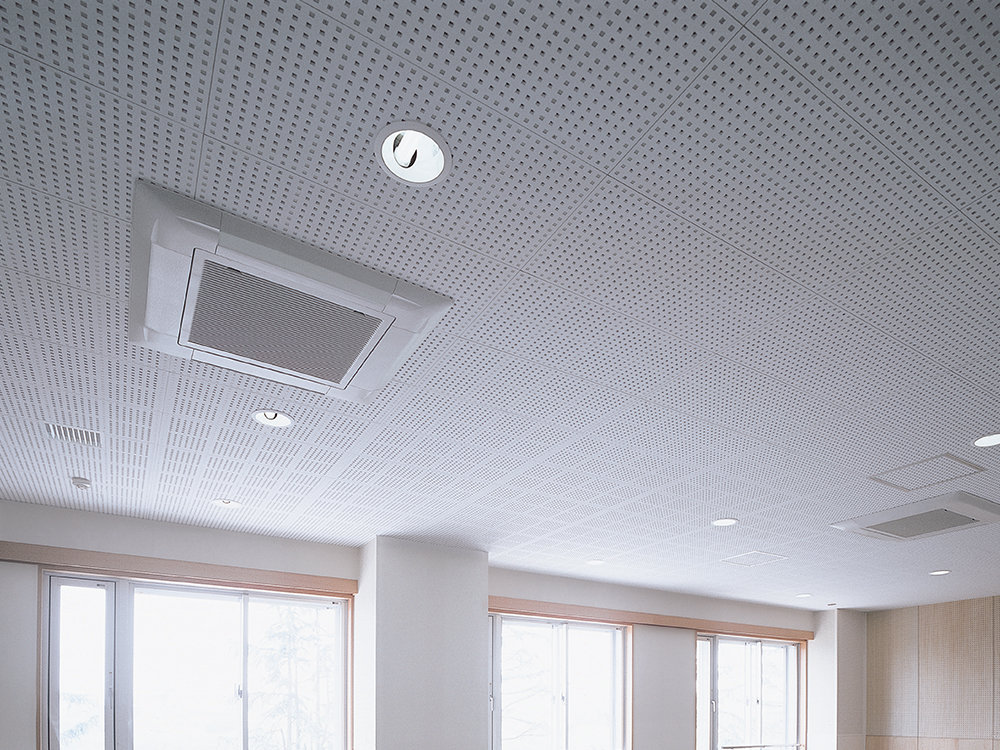

Sound absorbing ceiling board
Excels at absorbing human voice sounds (those in low and middle range frequencies). Combines the non-sound-absorbing 'Tiger Square Art' with a unified design, thereby providing optimal acoustic design in schools, conference rooms, etc.As formaldehyde absorption and decomposition performance has been added, it provides perfect countermeasures against sick schools, sick houses, etc.
By fixing specifically-made screws to the recessed part, the screws remain inconspicuous and the design uncompromised. It eliminates the need for joint processing and paint finishing on site, and reduces production costs and number of tasks to be done. As it is a non-combustible material, it is not subject to interior restrictions.
- Certification number
-
- NM-0879(9.5mm/incombustible)
- NM-4244(1)(9.5mm/incombustible)
- 公的認定等に関する表記
-
- Patent No.4763276
- Design No. 1219569
-
- Applications
- Ceiling
-
- Functionality/performance
- Sick house countermeasures
Sound absorbing boards
Decorative boards
-
- Standard
- Thickness: 9.5mm×455mm×910mm(incombustible/NM-0879)
Thickness: 9.5mm×910mm×910mm(incombustible/NM-4244(1))
