Fire-resistant wooden structure is currently in the spotlight

1. Utilization of domestic timber is encouraged in Japann

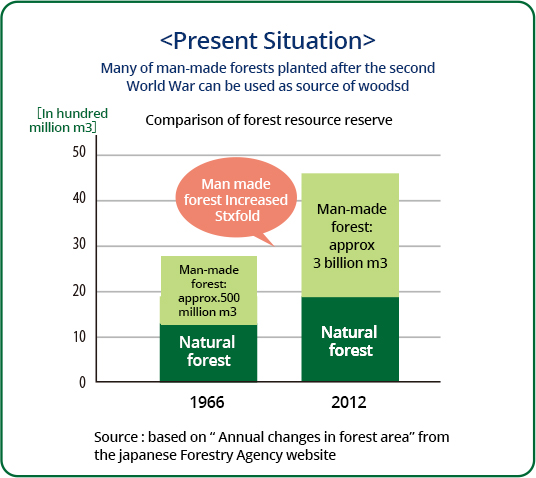

However,due to the worsening profitability of the forestry industry,the maintenance of forests is not enough,and the functions of forests are reduced. box image

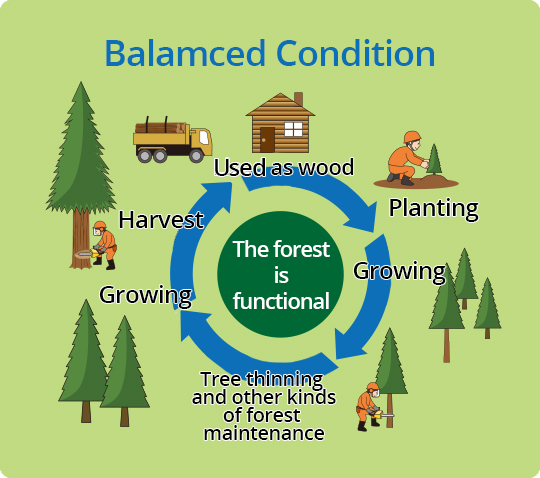

It is important to sustain the cycle of “planting”, “maintaining”, “harvesting”, “using” for the function of the forest to be sustainable. box image

2. Building fire resistant wooden buildings is now possible

2000 "Revision of the Building Standard Law Even wooden buildings can now be made fire-resistant." It becomes possible for fire-resistant buildings to be constructed with wooden materials
2004 Japan 2x4 Home Builders Association acquires fire resistant structure certification.
2006 Japan 2x4 Wooden Housing Industry Association acquires certification for fire-resistant construction
2010 The “Act on the Promotion of the Utilization of Wood in Public Buildings” is enacted As a rule, all low-rise public buildings are to be made using wood
2012 Yoshino Gypsum acquires certification for “Tiger Moen EX-B1” together with Nichiha
2013 Yoshino Gypsum acquires certification for “Exterior wall for fire resistant system with Duracrete finish”
2014 First regulatory notice concerning fire-resistant wooden construction (starting with MLIT Public Notice No. 861) Exterior wall and partition wall for fire-resistant wooden structure using gypsum board are now stipulated in the regulatory notice
2015 Yoshino Gypsum acquires certification for “Tiger Moen EX-B2” together with Nichiha
2018 Public announcement regarding fire resistant wooden structure (Announcement No. 472 by the Ministry of Land, Infrastructure, Transport and Tourism) Announcement of the specifications of fire resistant columns, floors, beams, roofs, and stairs made using gypsum board

3. More and more fire-resistant wooden buildings are built over the years

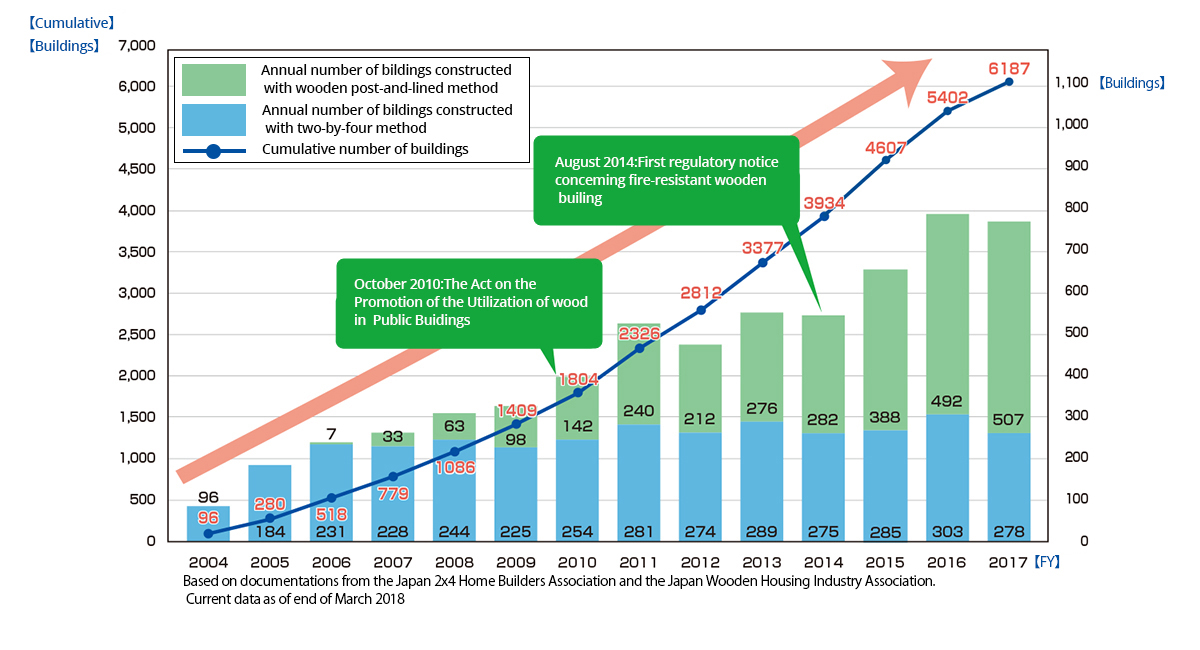

The state of issuance of approval for the usage of Minister Certified Specifications for fire-resistant wooden building (Cumulative number from 2 Associations)

chart

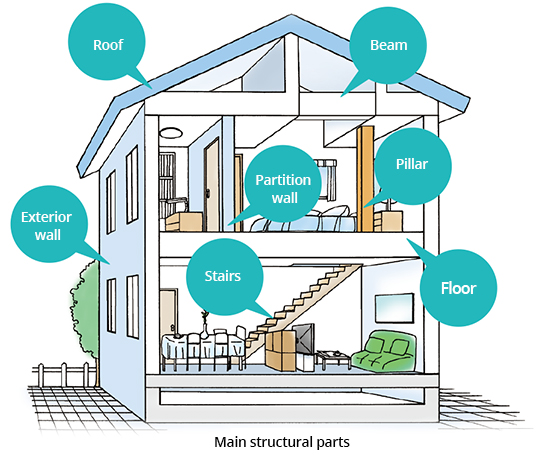

4.Fire-resistant wooden structure is made possible by using fire-resistant gypsum boards as cladding

Fire-resistant buildings are required to have the ability to keep standing without breaking down even after the fire has extinguished, which is achieved by making the main structure a fire-resistant structure.

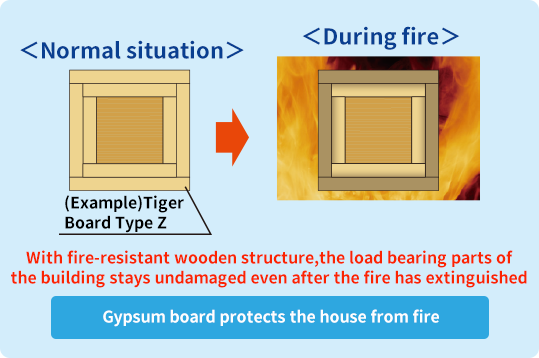

As for fire-resistant wooden buildings, the wooden structure can usually be protected from fire by cladding the wooden structure with fire-resistant gypsum boards.*

*In case of fire-resistant wooden structure with cladding
image card

6 advantages of fire-resistant wooden structure

1.Suitable for cramped small land plots

By making the building as a fire-resistant wooden structure, it is possible for the construction to be done without using heavy equipment such as a large crane because its materials are lighter than other construction methods such as reinforced concrete structure or steel structure.
It can be flexibly adapted to flag lots and cramped small lands that can be obtained relatively inexpensively.

image card

2. Excellent thermal insulation performance

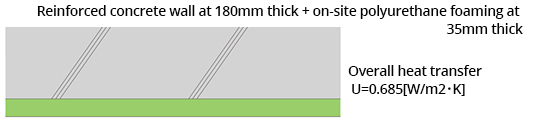

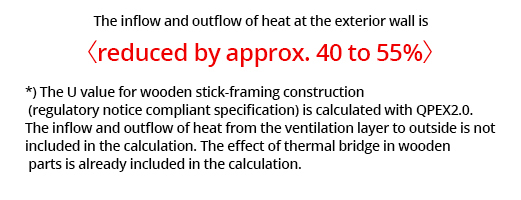

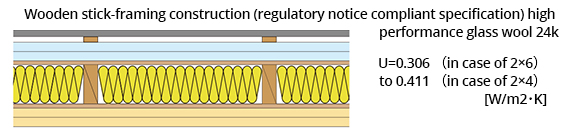

〈Comparison of overall heat transfer coefficient (heat transferablility)〉


Fire-resistant wooden structures are excellent in thermal insulation performance.

arrow

Because the indoor temperature change is small, it is possible to save the running costs for air conditioning.

3.Short depreciation period

With wooden structures, it is possible to write off more annual depreciation than reinforced concrete structures and steel structures.

Deprclation period comparison example between types of construction

card

In addition, there are tax advantages as well.

4.Wooden construction is useful for saving costs

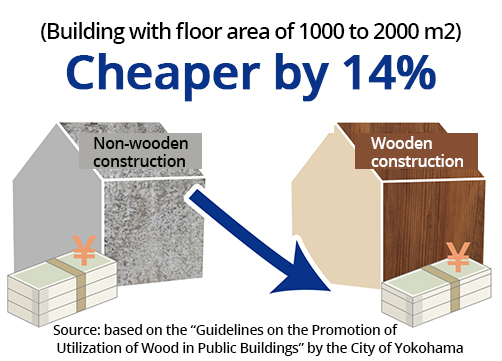

〈Comparison of construction cost (example)〉

card

Useful points for saving costs

  • ・With wooden construction, it is possible to use pre-cut technology, which enables the construction period to be shorter.
  • ・Wooden structures are lightweight, which enables to reduce the cost of construction for footing/foundation.

5.Reduce CO2 footprint

Using wood may lead to the reduction of CO2 footprint, etc., which makes it also effective for companies to improve their CSR.
In addition, by using locally produced materials, it can be expected to bring the revitalization of industrial activity.

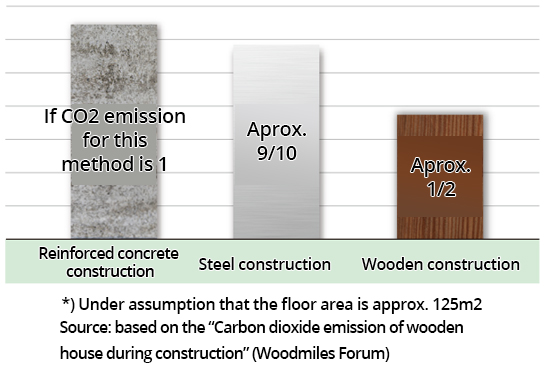

CO2 emission during construction for each construction method when constructing one house (kg-CO2)

card

6.Preferred “comfortable wooden house”

When questioned about which construction method to use if building or buying a house in the future, 8 out of 10 people in Japan answered that they would like to choose a house constructed of wood. The charm of the warmth of wood and its relaxing effect is widely known

card

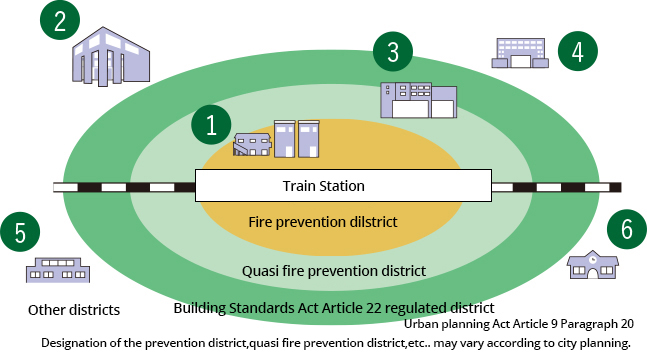

Usage and regional division of fire-resistant wooden structures

  • image

    Privete housing in fire prevention district(A building with a total area of over 100 square meters ,or a three- story building.Building Standard Act,Article 27)

  • image

    Buildings with a total floor space of more than 3,000 square meters (Building Standard Act, Article 21)

  • image

    Buildings with a floor area of more than 1,500 square meters in quasi-fire prevention district (Building Standard Act,Article 62)

  • image

    Three-story or higher special buildings such as schools, daycare center,care houses etc.Building Standard Act,Article27)

  • image

    Nursing homes(Act on Social Welfare for the Elderly, Article 14),senior citizens health facilities(Long -Term Care Insurance Act,Article 97)

  • image

    Kindergarten (School Education Act,Article 3)

Construction Method for Fire Resistant Wooden Buildings

A fire resistant wooden building can be built using the methods specified in "Ministry of Construction Notification No. 1399 of 2000" or by acquiring "Individual Certification"

The main structural parts are made fire resistant using the methods in "Ministry of Construction Notification No. 1399 of 2000" or are "Individually Certified".
card

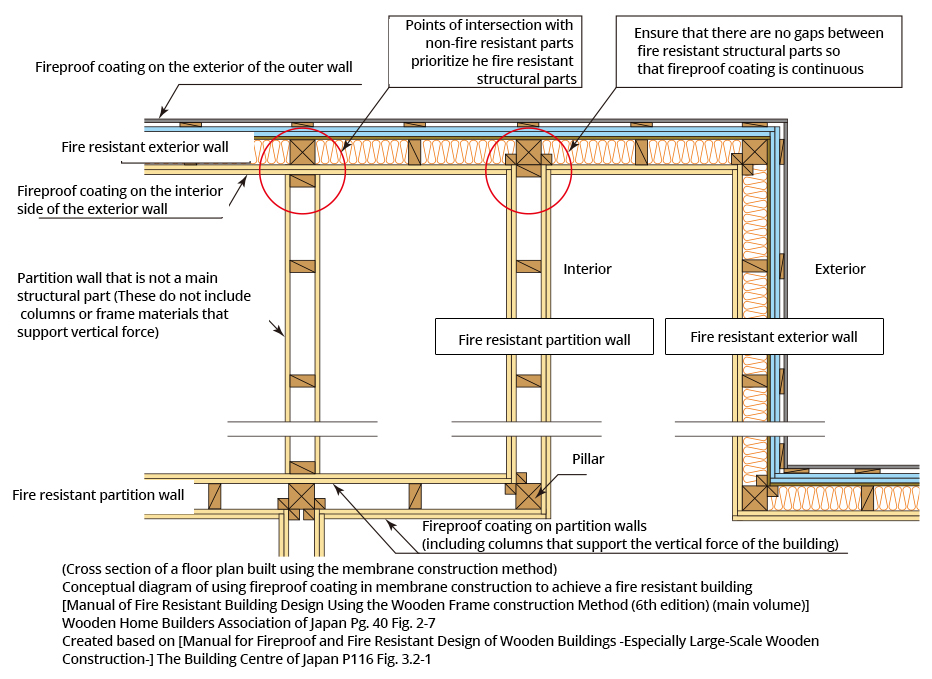

2.Membrane construction in which gypsum board (with fireproof coating) is connected throughout

When using the membrane construction method, the specifications and fit of each part are designed based on the following concepts

  • The interior sides of pillars, beams, frames, etc. must be covered with a fireproof material without gaps.
  • Even when joining a membrane construction with a structure made using a different construction method (for example, a mixed structure containing RC construction), the entire enterior must be covered with a fireproof coating without gaps.
  • At points of intersection between fire resistant structure materials and non-fire resistant partition walls (excluding columns and frame materials that support vertical force), fireproof coating material is applied first to the fire resistant structure, and then to the partition wall.

Gypsum Board As Fireproof Coating

Only Fire Resistant Gypsum Board with vermiculite can be used for the purposes described in these announcements

[Excerpt of Technical Explanation]

2.Things to keep in mind when checking a structure

(Omitted)

Checking the conformity of fireproof coating
This annoucement only applies to reinforced gypsum boards with gypsum, glass fiber and vermiculite contents above a certain level, excluding the base paper used for the board. So far , only the following materials have been certified by the Minister of Land, Infrastructure, Transport and Tourism as non-combustible.

  • Of the NM-8615 "Fire-Resistant Gypsum Boards", GB-F(V) (with Vermiculite).
  • Variants of the NM-1498 "Double-sided chemical-coated board base paper and gypsum boards" in which the content of gypsum, glass fiber and vermiculite achieve the required levels
※1

For materials qualifying under item 2 above and other products, please confirm conformity to the specifications based on the composition table etc.

(2)Fastening of fireproof coating

(Omitted)

From August 22, 2014, Ministry of Land, Infrastructure, Transport and Tourism Housing Bureau construction guidance No. 1785, "Technical advice regarding the enforcement of public announcements ammending certain matters determining the construction method of fire resistant structures"

  • ※1
    • Applies to Tiger board type Z
    • Applies to Tiger board type Z-WR
    • The composition of the core materials of GB-F(V) (with vermiculite) is as follows
      Gypsum 95% or more, vermiculite 2.5% or more, glass fiber 0.4% or more

[Excerpt of Technical Explanation]

Query from the Public What are your thoughts regarding durability and waterproofness when using Fire Resistant Gypsum Boards as an outer wall?
Response from the Ministry of Land, Infrastructure, Transport and Tourism We believe that Fire-Resistant Gypsum Board used for an outer wall must be properly maintained, and that processing to ensure durability and waterproofness, such as waterproofing and antiseptic treatment etc., must be duly considered.※2

Quoted from August 27, 2014, Ministry of Land, Infrastructure, Transport and Tourism, Residential Bureau, Building Guidance Section, “Responses to solicitied opinions regarding the planned partial revision of the determination regarding construction methods for fire resistant structure (Ministry of Construction Public Announcement No. 1399 of 2000) ”

※2Applies to Tiger board type Z-WR

Tiger Board Type Z-WR

Waterproofness

"Tiger board type Z-WR" is highly waterproof.

Comparison of total water absorption between "Tiger board type Z-WR" and "Tiger waterproof board"
tbl
  • * The above performance values were measured using the JIS A 6901 test method.
  • * Total water absorption: Percentage of mass increase when a sample piece of board is placed in water for 2 hours
Tiger board type Z-WR absorbs less water.

【Test Method】

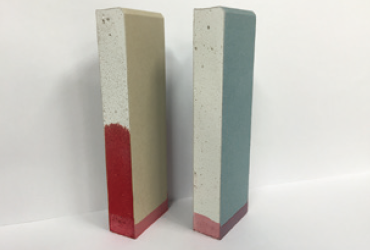

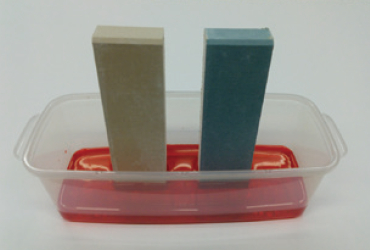

The bottom 1 cm of the sample pieces of Tiger board type Z-WR and Tiger board type Z (standard fire resistant gypsum boards ) were soaked in inked water water for one hour, and the amount of water absorbed by each test piece was compared.

  • 【During the test】


    Left: Tiger board type Z
    Right: Tiger board type Z-WR

  • 【After the test】


    Left: Tiger board type Z
    Right: Tiger board type Z-WR

【Test results】The Tiger board type Z-WR absorbed less inked water.

Durability

"Tiger board type Z-WR" still satisfied the JIS standards (for flexural strength and moisture content) even after 5 years had passed and did not develop mold.

Durability Testing

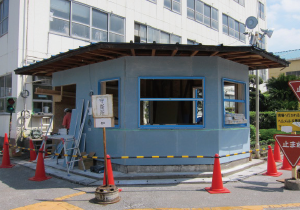

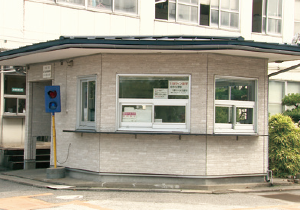

The durability of the outer wall of a wooden fireproof structure built with "Tiger board type Z-WR".

  • image

    Covering with double-layer of Tiger board type Z-WR 21mm

  • Exposure outside for 1 month (during the rainy season)

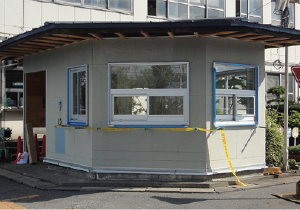

  • image

    Condition of the double-layered Tiger board type Z-WR 21mm after 1 month of exposure
    *Although exposure has discolored the base paper, the board’s performance is not affected.

  • Application of exterior covering

  • image

    The double-layered Tiger board type Z-WR 21mm is covered with a waterproof sheet, and ceramic siding is installed with some space between layers to allow for ventilation.

  • Five years pass

  • image

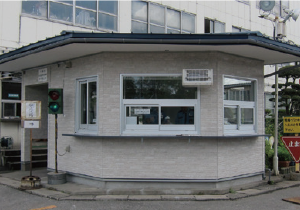

    The state of ceramic siding after five years


    The ceramic siding and waterproof sheet are peeled off to check the state of the board underneath.

    【Test results】Year-over-year change of Tiger Board Type Z-WR after 5 years

    Nail pullout resistance* Molding Base paper peeling Rusting of fastening screws
    100% None None None
    * Nail pullout resistance is the percentage of strength compared to that from before construction
Tiger board type Z-WR is both water- and mildew-proof, and exhibits high durability when ventilation between layers is implemented.
